Sandblasting Equipment

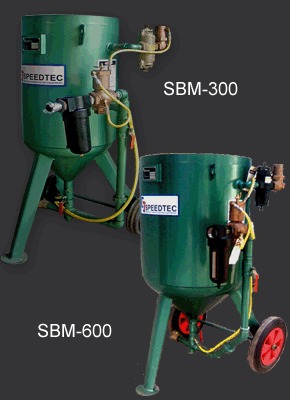

Blasting Pot SBM-600 & SBM-300

The Capacity size of Blasting Pot SBM-600 is 250Kgs and SBM-300 is 150Kgs, with same piping installed size 1-1/4" and Working Pressure up to 12 bar. We recommended Blasting Pot SBM-600 or SBM-300 for your blasting jobs at Oil Company and Dock-Yard, also your professional jobs..

Ordering Package Include

-Nozzle Blasting
-Blasting Hose 1-1/4" x 20mtr
-Nozzle Holder
-Hose Coupling
-Blasting Helmet
-Blasting Suit
-Remote Control Valve
-Moisture Seperator
-Breathing Air Filter
-Air Hose 1" with connector
-Air Hose 1/2" with connector
-Air Hose 1/4" with connector

Description of Operation

The operator controls blasting from a remote control handle at the nozzle. Pressing the handle starts blasting; releasing it stops blasting. The blast machine contains abrasive and meters it into the compressed air stream.

Advantages

-Yard portable, industrial-quality blast machines manufactured to ASME code.
-1-1/4-inch piping allows up to 50 percent more air flow when compared with 1-inch piping.
-Industrial-quality valves, piping and fittings designed to maximize air flow and minimize energy required to operate the system.
-Ball valve maintains smooth, consistent, adjustable media ball valve.

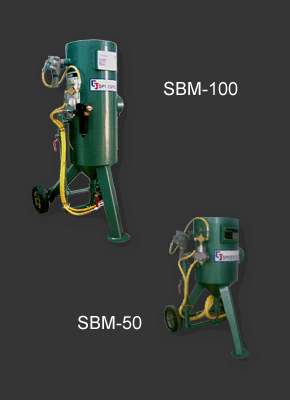

Blasting Pot SBM-100 and SBM-50

Blasting Pot SBM-100 Capacity 50Kgs and SBM-50 Capacity 25Kgs, We recommended to you for your small jobs and general maintenance only. For the big jobs not recommended..

Ordering Package Include

-Nozzle Blasting
-Blasting Hose 1/2" x 10mtr
-Nozzle Holder
-Hose Coupling
-Blasting Helmet
-Blasting Suit
-Remote Control Valve
-Moisture Seperator
-Breathing Air Filter
-Air Hose 1/2" with connector
-Air Hose 1/2" with connector
-Air Hose 1/4" with connector

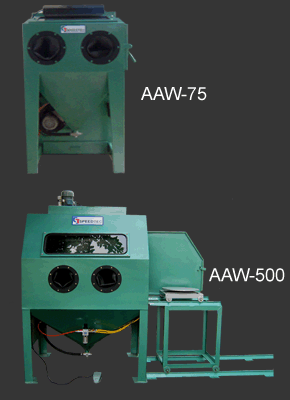

Dry Suction Blasting Cabinet

Our Dry Blasting Cabinet come with two type AAW-75 standard type for small blasting jobs and leightweight duty items. Type SBM-500 with rotary table for small blasting jobs but this type for the heavyweight items.

Safety

  • Industrial-quality lift-off hinges allow easy door removal
  • Full-opening doors maximize work chamber capacity and eases loading large parts
  • Full-length, neoprene-on-fabric gloves protect operator
  • Ceiling light fixture maximizes window view area and offers commanding view of interior
Productivity
  • Unique air logic system maximizes air and media flow for blasting
  • Industrial-quality, coupled two-braid blast hose and tungsten carbide nozzle
  • Reverse-pulse cartridge dust collector evacuates spent media and ensures
  • optimal visibility for blasting; traps 99.7% of dust down to 0.5 micron
  • Adjustable chrome latches seal doors tight through years of service
Convenience
  • Tilt-out window allows tool-free glass changes in minutes
  • Easy-to-reach pressure regulator, gauge, and electric switch
  • Built-in air gun conveniently located inside allows part blow-off inside cabinet
Common Applications
  • Cleaning parts
  • Deburring machined parts
  • Stripping paint
  • Improving surface finish
  • Removing carbon build up
  • Removing heat scale
  • Applications too numerous to list
